Arcade Mode: PCE Shoot-em-ups…

ASIDE: Here is a Complete List of TG-16/PCE Shmups in a table (sortable by year, developer, media format, sub-genres—cute-em-up, vertical vs. horizontal vs. rail, etc.)...

Fifteen vertical shoot-em-ups ("shmups") on the PCE/TG-16 offer (A) "standard resolution" as well as a special (C) High-Resolution "Arcade Mode" that attempts to re-create the look and feel of (B) arcade cabinets with dedicated vertical monitors. This was the era before TATE, comrades. Discussion continues below…

 A = Normal Mode (PCE), B = Arcade, C = Arcade Mode (PCE) NOTE: PCE/TG-16 games with an option for "Arcade Mode"…

NOTE: In some games, "Arcade Mode" is an option readily available from a menu. For other games, however, you will need to enter a code (and, depending upon the title, this code is a feat of endurance—see Tatsujin, Final Soldier, Dragon Spirit and Super Star Soldier as prime examples).

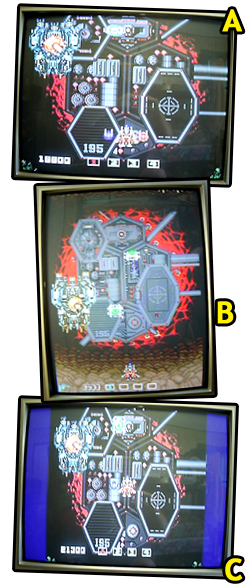

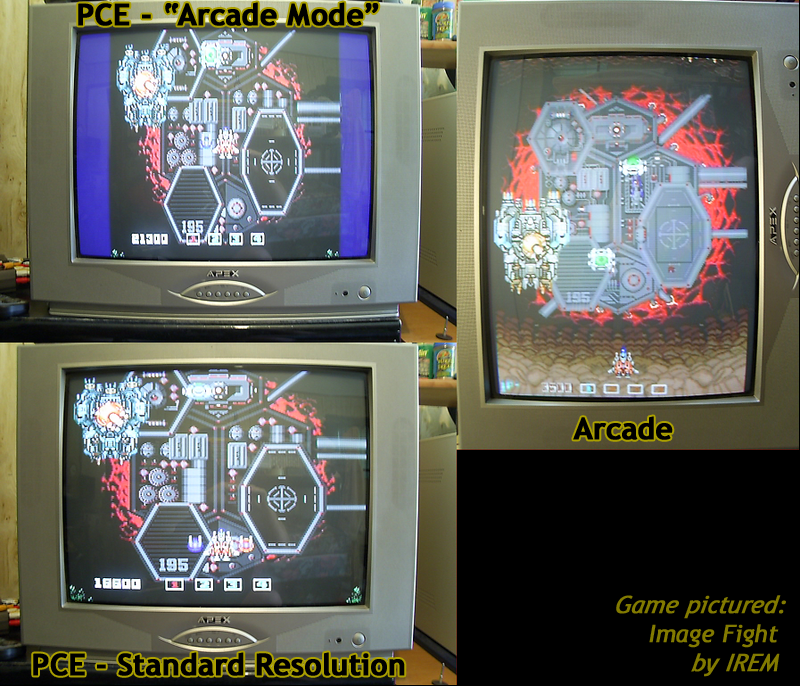

LEGEND: A = Normal Mode (PCE), B = Arcade, C = "Arcade Mode" (PCE). The game pictured is Image Fight by IREM.

Further Discussion: The PC-Engine (and to a lesser extent, the TurboGrafx-16) was graced with a healthy stable of approximately 111 shooters (shoot-em-ups, or shmups), some of which were truly outstanding. Fans of the shoot-em-up genre have long been attracted to the PCE/TG-16 for its exclusive titles (Nexzr, Soldier Blade, GunHed/Blazing Lazers, Spriggan, etc.) as well as competent (for the era) ports of arcade titles (Gradius II, Raiden, Dragon Spirit, Dragon Saber, etc.).

THESIS: However gimmicky the PCE high-resolution arcade mode may appear to contemporary audiences, it should be seen as a pre-cursor to the TATE mode that appeared in later consoles.

Fifteen vertical shoot-em-ups ("shmups") on the PCE/TG-16 offer a special High-Resolution Arcade Mode, which changes the output resolution of the PCE/TG-16 console to a higher resolution. The result? Vertical bars fill the sides of a standard 4:3 televsion screen, with gameplay confined to a slender vertical rectangle (an attempt to re-create arcade shoot-em-ups with dedicated vertical screens).

Of course, there are some folks who view this so-called "Arcade Mode" as little more than a superficial gimmick. They view this psuedo-arcade mode as a clumsy, distorted version of the original game, with no real benefits. According to these critics, the graphics are "squeezed", not unlike those of a Fun House mirror, in a misguided attempt to mimic vertical monitors found in arcade cabinets.

From a purely historical perspective, this "Arcade Mode" reveals the shoot-em-up fan's desire to have an arcade experience on a home console. Likewise, developers recognized their audience's desires and attempted to satiate it (regardless of the technical merits/flaws of their solutions). It was much later, with the introduction of TATE mode, that shoot-em-up fans would be able to simulate the arcade experience at home (assuming, of course, they were able to turn their television set on its side). However gimmicky the PCE high-resolution arcade mode may appear to contemporary audiences, it should be seen as a pre-cursor to the TATE mode that appeared in later consoles.

So, is PCE's "Arcade Mode" worth your time? Many people appreciate the option to play in "Arcade Mode", since it breathes new life into old, familiar games. You will have to decide for yourself.

THANKS: A great big Thank You! goes out to SuperPlay for contributing all of the screenshots below and clarifying the codes. Professor Professorson kindly took the photographs of Image Fight on his APEX monitor (see above!). Of course, this page would not exist if it weren't for the fine folks who participated in the "What shmups have an option for a high resolution mode (Arcade Mode)?" thread at pcenginefx.com forums.

1943 KAI (1991, HuCard)

▲ Return to top

ARCADE MODE available in "Options" menu.

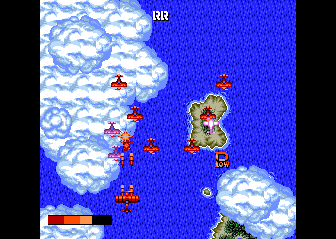

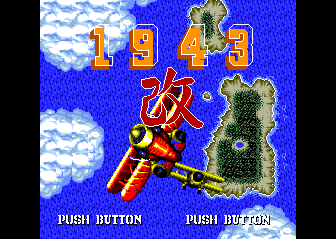

 1943 Kai (Normal Mode)  1943 Kai (Arcade Mode)

 1943 Kai (Normal Mode)  1943 Kai (Arcade Mode)

▲ Return to top

Alzadick: Summer Carnival '92 (1992, CD)

▲ Return to top

HELP! Actually, Alzadick might not offer this mode. We need confirmation and screenshots!

▲ Return to top

Burning Angels (1990, HuCard)

▲ Return to top

ARCADE MODE available in menu.

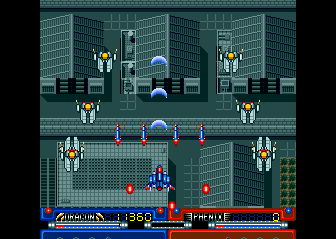

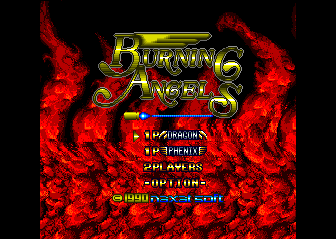

 Burning Angels (Normal Mode)  Burning Angels (Arcade Mode)

 Burning Angels (Normal Mode)  Burning Angels (Arcade Mode)

▲ Return to top

Cyber Core (1990, HuCard)

▲ Return to top

ARCADE MODE:

  • Press LEFT then SELECT on the title page to show the "Enter Password" option.
  • Enter the password "MAKIRIN".

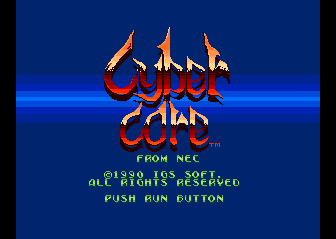

 Cyber Core (Normal Mode)  Cyber Core (Arcade Mode)

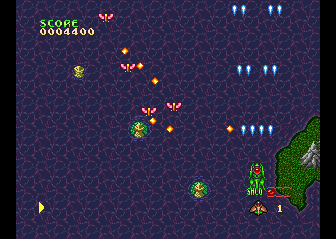

 Cyber Core (Normal Mode)  Cyber Core (Arcade Mode)

▲ Return to top

Daisenpuu (1990, HuCard)

▲ Return to top

HELP! What about Daisenpuu Custom (CD-ROM)? Does that version also support this mode?

ARCADE MODE: Hold "I" button, then turn console's power on.

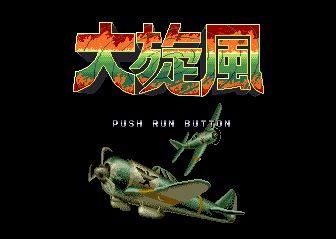

 Daisenpu (Normal Mode)  Daisenpu (Arcade Mode)

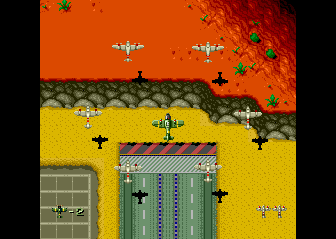

 Daisenpu (Normal Mode)  Daisenpu (Arcade Mode)

▲ Return to top

Dragon Saber (1991, HuCard)

▲ Return to top

ARCADE MODE: Reset the game 30 times for hi-res arcade mode. Note: Hold down RUN, then hit SELECT for a soft reset.

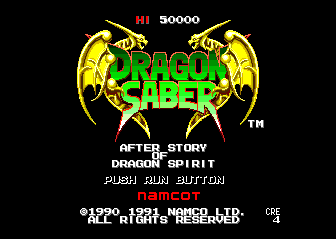

 Dragon Saber (Normal Mode)  Dragon Saber (Arcade Mode)

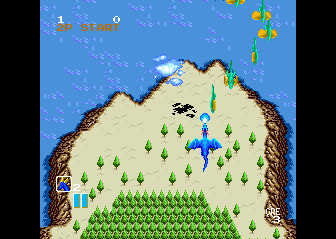

 Dragon Saber (Normal Mode)  Dragon Saber (Arcade Mode)

▲ Return to top

Dragon Spirit (1988, HuCard)

▲ Return to top

ARCADE MODE: Reset the game 57 times for hi-res arcade mode. Note: Hold down RUN, then hit SELECT for a soft reset.

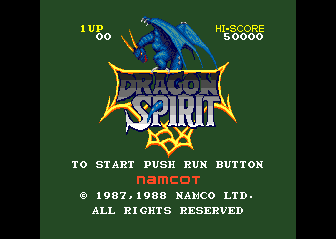

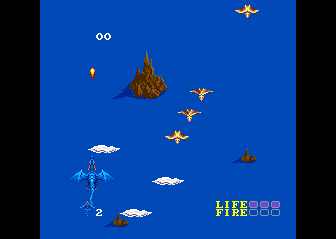

 Dragon Spirit (Normal Mode)  Dragon Spirit (Arcade Mode)

 Dragon Spirit (Normal Mode)  Dragon Spirit (Arcade Mode)

▲ Return to top

Final Soldier (1991, HuCard)

▲ Return to top

ARCADE MODE:

  • At the title screen, as "Normal Game" is displayed, press—Left, Left, I, Right, Right, II, Up, Down, Up, Down
  • A sound effect will ring as it enables the "Stage Select" trick (and a purple number will appear near the bottom of the screen).
  • Repeat the previous code—Left, Left, I, Right, Right, II, Up, Down, Up, Down
  • If input correctly, you will hear the sound effect again.
  • Finally, RESET (hold RUN, then press SELECT) and the game will be running in the higher resolution mode.

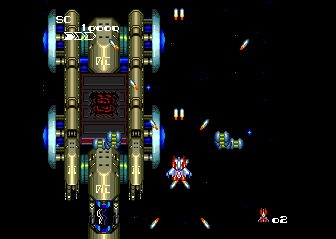

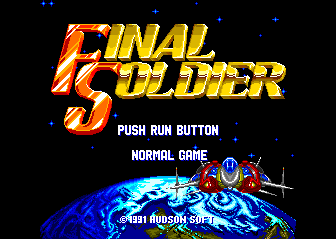

 Final Soldier (Normal Mode)  Final Soldier (Arcade Mode)

 Final Soldier (Normal Mode)  Final Soldier (Arcade Mode)

▲ Return to top

Image Fight (1990, HuCard)

▲ Return to top

ARCADE MODE: Hold the "I" button when the "Irem" logo is displayed.

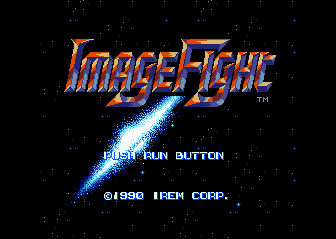

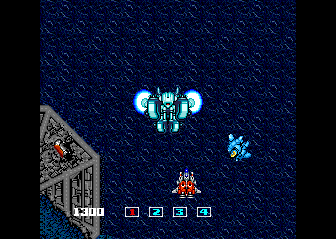

 Image Fight (Normal Mode)  Image Fight (Arcade Mode)

 Image Fight (Normal Mode)  Image Fight (Arcade Mode)

▲ Return to top

Nexzr (1992, SCD)

▲ Return to top

ARCADE MODE available in "Options" menu.

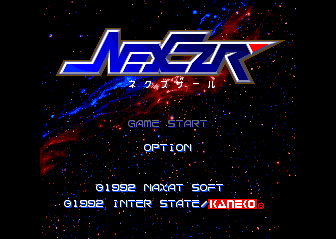

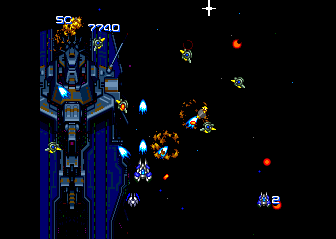

 Nexzr (Normal Mode)  Nexzr (Arcade Mode)

 Nexzr (Normal Mode)  Nexzr (Arcade Mode)

▲ Return to top

Soldier Blade (1992, HuCard)

▲ Return to top

ARCADE MODE available in "Options" menu.

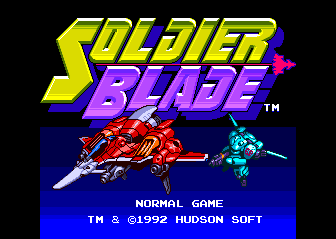

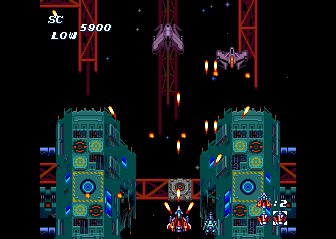

 Soldier Blade (Normal Mode)  Soldier Blade (Arcade Mode)

 Soldier Blade (Normal Mode)  Soldier Blade (Arcade Mode)

▲ Return to top

Steam Hearts (1996, SCD)

▲ Return to top

ARCADE MODE: Actually, Steam Hearts is in high resolution by default; the right-hand margin is used to display status and the score.

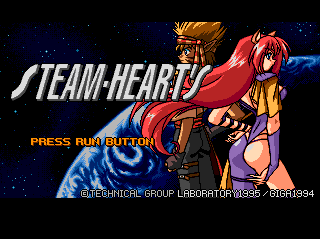

 Steam Hearts (Arcade Mode)

 Steam Hearts (Arcade Mode)

▲ Return to top

Super Raiden (1992, CD)

▲ Return to top

HELP! We need screenshots!

NOTE: This mode was not available in the commercial release of Super Raiden. It is a hack that changes the resolution mode from 256x224 to 352x224 (increasing the horizontal resolution mode has the effect of "squeezing" the game content and introducing vertical bars).

▲ Return to top

Super Star Soldier (1990, HuCard)

▲ Return to top

ARCADE MODE:

  • Hold down RUN+SELECT, then power on the console.
  • Release RUN+SELECT.
  • Enter L, II, U, II, R, II, D, II, L, I, U, I, R, I, D, I, (I+II)x8, (I+SELECT)x8.

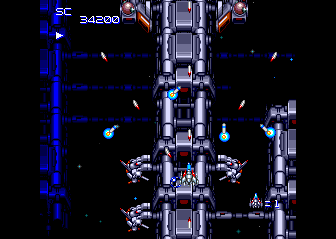

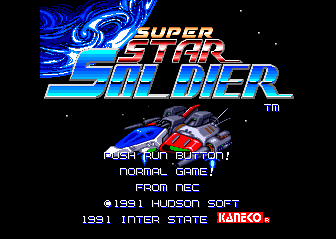

 Super Star Soldier (Normal Mode)  Super Star Soldier (Arcade Mode)

 Super Star Soldier (Normal Mode)  Super Star Soldier (Arcade Mode)

▲ Return to top

Tatsujin (1992, HuCard)

▲ Return to top

ARCADE MODE ("Slim Screen") available in "DEBUG MODE":

  •  Tatsujin (DEBUG MODE)
  • Activating DEBUG MODE (pictured above) is a chore…
  • Play a game to 7,100 points (kill all enemies up to the first large characters).
  • While the game is still playing, reset the system (RUN + SELECT), then…
  • At the title screen press and hold SELECT, then press RUN.
  • Under the "SCREEN" option, you can toggle between NORMAL and SLIM ("Arcade Mode")…

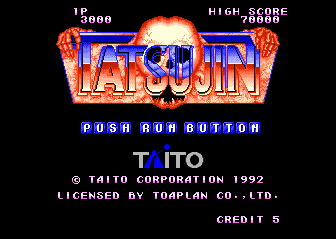

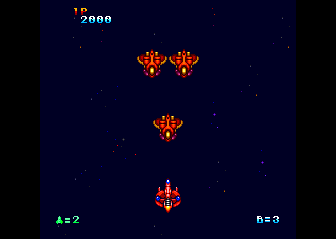

 Tatsujin (Normal Mode)  Tatsujin (Arcade Mode)

 Tatsujin (Normal Mode)  Tatsujin (Arcade Mode)

PLEASE NOTE:

  •  Tatsujin (STANDARD OPTIONS MODE)
  • Sadly, "Arcade Mode" is not available from the STANDARD Options Menu (pictured above).
  • To access the STANDARD Options Menu, HOLD SELECT and press RUN on the title screen.
  •  Tatsujin (PROTOTYPE DEBUG MODE)
  • Interestingly if you use the STANDARD "Options Cheat" on the Prototype ROM (pictured above) you get a slightly different options menu (an "Area Select" option is added).

▲ Return to top

Toilet Kids (1992, HuCard)

▲ Return to top

ARCADE MODE: Press and Hold Select whilst you turn on console (at the title screen).

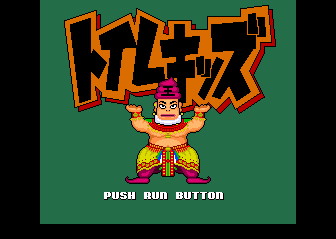

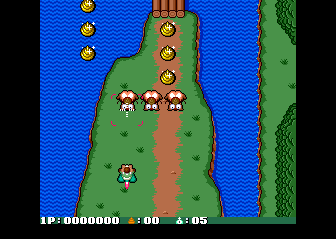

 Toilet Kids (Normal Mode)  Toilet Kids (Arcade Mode)

 Toilet Kids (Normal Mode)  Toilet Kids (Arcade Mode)

▲ Return to top

Travel Epuru/Epule (1992, HuCard)

▲ Return to top

ARCADE MODE: Pause game. Push up/down to toggle between "normal" and "vertical" displays.

 Travel Epuru/Epule (Normal Mode)  Travel Epuru/Epule (Arcade Mode)

 Travel Epuru/Epule (Normal Mode)  Travel Epuru/Epule (Arcade Mode)

▲ Return to top

Twinbee (Detana!! Twin Bee) (1992, HuCard)

▲ Return to top

ARCADE MODE:

  • HARDWARE: You need a multitap with three (or more) connections.
  • On the TITLE SCREEN, using the THIRD CONTROLLER—Press I, II, Right, Left, Right, Left, Down, Down, Up, Up
  • Finally, select "Vmode" (Vertical Mode) in option menu.
  • NOTE: Twinbee does not change the TITLE SCREEN ratio when in Vmode / Arcade mode, only gameplay is altered (see image below).

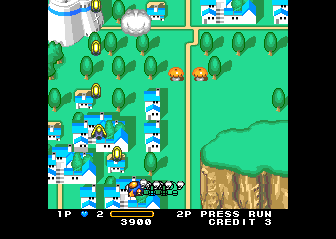

     Twinbee (Normal Mode)  Twinbee (Arcade Mode)

     Twinbee (Normal Mode)  Twinbee (Arcade Mode)

    ▲ Return to top

This page is a WORK IN PROGRESS…

For the most up-to-date list of games, please consult the "What shmups have an option for a high resolution mode (Arcade Mode)?" thread at the pcenginefx.com forums. Thank you for visiting!
